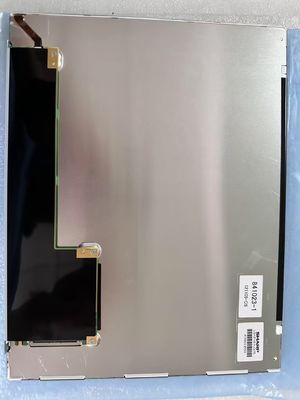

Sharp 12.1inch Gaming LCD panel LQ121S1LG75 800*600Pixels 82PPI 330cd/M2 30PIN 3.3V

Merknaam:	Sharp
Modelnummer:	LQ121S1LG75
MOQ:	10pcs
Prijs:	negotiable
Verpakking:	Industrial packing
Betalingsvoorwaarden:	T/T,W, Western Union, MoneyGram

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Place of Origin:

China

Certificering:

Rohs,CE,FCC

Quality:

Brand new Original

Package:

Original industrial packing

resolution:

800*600pixels

style:

30PIN IPS

brightness:

330CD/M2

color:

16.7m

contrast ratio:

800 :1

working life:

50K Hours

Type:

Size:

12.1inch

Lamp type:

Voltage:

Supply Ability:

3000pcs per week

Markeren:

LQ121S1LG75 Gaming Lcd panel

800*600Pixels Gaming Lcd panel

330cd/M2 Gaming Lcd panel

Productbeschrijving

Sharp 12.1inch Gaming Lcd panel LQ121S1LG75 800*600Pixels 82PPI 330cd/M2 30PIN 3.3V

The LQ121S1LG75 (Alias: FX-12-075) is a 12.1 inch diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -10 ~ 75°C , a storage temperature range of -30 ~ 75°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by einklcd in the following: sRGB, WLED Backlight, Life ≥ 50K hours, With LED Driver, 180° Reverse, Matte , Embeded RGB independent γ correction circuit, Built-in dimming circuit.Based on its features, einklcd recommend that this model be applied to Gaming etc. According to the information stored in einklcd this model mass production on Q1, 2011 and last shippment on Q2, 2017, Now this model is discontinued. We inputted this model's specification on Jan 5 2011 for the first time, and the latest update on Aug 31 2023. If you want to embed LQ121S1LG75 LCM in your future product, einklcd strongly recommend that you should contact with Sharp or it's agent to learn lateast production and specification detail. The LQ121S1LG75 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:Sharp

Model P/N:LQ121S1LG75
Diagonal Size: 12.1"

Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×600, SVGA 82PPI Pixel

Format RGB: Vertical Stripe
Active Area 246(W)×184.5(H) mm

Bezel Opening 249.6(W)×188.1(H) mm
Outline(mm) 265 × 205 × 10 (H×V×D)

Treatment Antiglare, Hard coating (3H)
Luminance: 330 cd/m² (Typ.)

Contrast Ratio: 800 : 1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) Left / Right / Up / Down

Response: 30 (Typ.)(Tr+Td) ms
Good View at 6 o'clockWork ModeTN, Normally White, Transmissive
Color Depth:16.2M 100% sRGB

Backlight WLED , 50K hours , With LED Driver
Mass:550g (Max.)

Used for: Gaming
Refresh Rate60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit

Touchscreen: Without
Signal Type: LVDS (1 ch, 8-bit) , 30 pins Connector
Voltage Supply: 3.3V (Typ.)
Max. Ratings

Storage Temp.: -30 ~ 75 °C

Operating Temp.: -10 ~ 75 °C
