Innolux 13.3inch Laptop lcd Display Model N133HCE-G52 1920x1080Pixels 166PPI 30PIN tablet PC LCD Screen

Merknaam:	Innolux
Modelnummer:	N133HCE-G52
MOQ:	10 -stcs
Prijs:	negotiable
Verpakking:	Industriële verpakking
Betalingsvoorwaarden:	T/T, Western Union, MoneyGram

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Rohs,CE,FCC

Kwaliteit:

Gloednieuw origineel

Pakket:

Originele industriële verpakking

Materiaal:

helderheid:

300ccd/m2

Oplossing:

1920*1080pixels

Contrastverhouding:

800: 1

Kleur:

16,7m

Werkend leven:

15k uur

Aansluiting:

Aanraakpaneel:

zonder

Schermgrootte:

13.3 inch

Levering vermogen:

3000 pcs per week

Productbeschrijving

Innolux 13.3inch Laptop lcd Display Model N133HCE-G52 1920x1080Pixels 166PPI 30PIN tablet PC LCD Screen

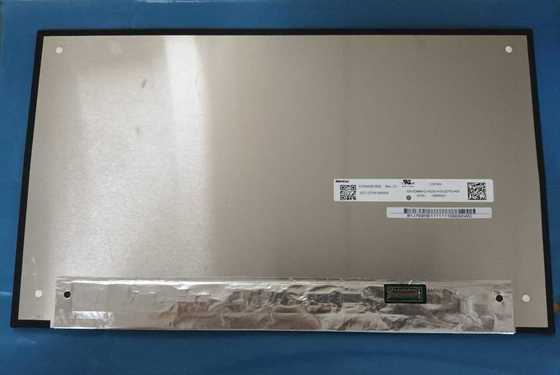

The N133HCE-G52 (Product Code: CMN1382) is a 13.3 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: sRGB, WLED Backlight, With LED Driver, Reverse I/F, Matte , eDP1.3, Caution: Rev.C1 DP/N 00DDJ0 left connector, Rev.B1 DP/N 02MMH2 right connector. Based on its features, Panelook recommend that this model be applied to Laptop etc. According to the information stored in einlcd this model mass production on Q2, 2018, Now this model is in production. We inputted this model's specification on Nov 28 2018 for the first time, and the latest update on Aug 17 2023. If you want to embed N133HCE-G52 LCM in your future product, einlcd strongly recommend that you should contact with Innolux or it's agent to learn lateast production and specification detail. The N133HCE-G52 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:Innolux

Model P/N: N133HCE-G52

Diagonal Size13.3"

Panel Type: a-Si TFT-LCD, LCM

Resolution1920(RGB)×1080, FHD 166PPI

Pixel Format RGB Vertical Stripe

Active Area 293.76(W)×165.24(H) mm

Bezel Opening-

Outline Size 300.26(W)×177.55(H) ×4.4(D) mm

Surface Antiglare, Hard coating (3H)

Brightness 300 cd/m² (Typ.)

Contrast Ratio 800:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down Display Mode AAS, Normally Black, Transmissive

IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich

VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA

Best View on Symmetry

Response Time 14/11 (Typ.)(Tr/Td)

Display Colors 262K 100% sRGB

Lamp Type WLED , 15K hours , With LED Driver

Frequency 60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit Touch Screen Without

Shape Style Slim (PCBA Bent, T≤3.0mm) Application Laptop

Signal Interface eDP (2 Lanes) , eDP1.3 , 30 pins Connector

Input Voltage 3.3V (Typ.)

Environment Operating Temp.: 0 ~ 50 °C ;

Storage Temp.: -20 ~ 60 °C
