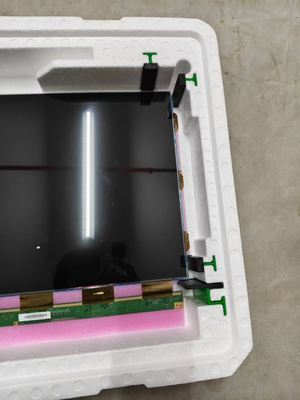

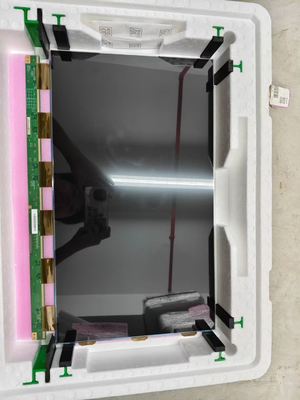

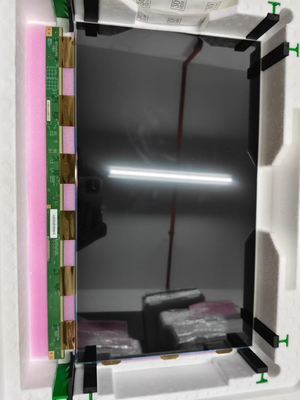

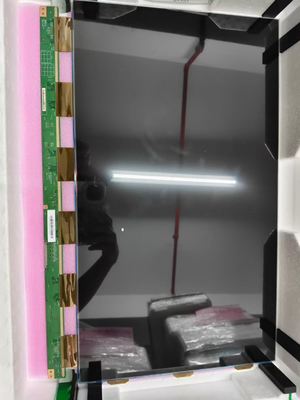

BOE 21.5inch Industrial LCD Display with 1500cd/M2 Brightness 16.7m Colors and 1000:1 Contrast Ratio

Merknaam:	BOE
Modelnummer:	QV215FHB–N10
MOQ:	10 STUKS
Prijs:	negotiable
Verpakking:	Industriële verpakking
Betalingsvoorwaarden:	T/T, W, Western Union, MoneyGram

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Rohs,CE,FCC

Kwaliteit:

Gloednieuw origineel

Pakket:

Originele industriële verpakking

Oplossing:

1920*1280pixels

Stijl:

30Pin IPS

Helderheid:

1500CD/m2

Kleur:

16,7m

Contrastverhouding:

1000: 1

Werkend leven:

30k uur

Type:

Maat:

21.5 inch

soort lamp:

Spanning:

Levering vermogen:

3000 pcs per week

Markeren:

1500cd/M2 Industrial LCD Display

16.7m LCD Panel

1000:1 Contrast Ratio TFT-LCD Display

Productbeschrijving

BOE 21.5inch Industrial Lcd cell QV215FHB–N10 1920*1080Pixels 102PPI 1500cd/M2 30PIN

The QV215FHB-N10 is a 21.5 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), without backlight, without touch screen. It features an operating temperature range of -10 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: Landscape / Portrait, Matte . Based on its features, Einklcd recommend that this model be applied to Industrial etc.Built-in 6 source + 3 gate chips driver IC. According to the information stored in Einklcd this model mass production on Q1, 2020, Now this model is discontinued. We inputted this model's specification on Jun 9 2021 for the first time, and the latest update on Jul 11 2025. If you want to embed QV215FHB-N10 CELL in your future product, Einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The QV215FHB-N10 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:BOE

Model P/N: QV215FHB-N10

Diagonal Size: 21.5"

Panel Type: a-Si TFT-LCD, CELL , FOB

Resolution 1920(RGB)×1080, FHD 102PPI Pixel

Format RGB Vertical Stripe

Active Area 476.064(W)×267.786(H) mm

Bezel Opening-

Outline Size :487.2(W)×281(H) ×1.32(D) mm

Brightness: 0 cd/m²

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Best View on Symmetry

Glass Depth 0.50+0.50 mm,It's Depth of CF Depth + Array Depth,CELL Depth = CF Depth + Array Depth

Display Colors: 16.7M 75% NTSC

Frequency:60Hz,

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Weight: 420g (Typ.)

Surface: Antiglare (Haze 25%), Hard coating (3H)

Contrast Ratio: 1000:1 (Typ.) (TM)

Display Mode: ADS, Normally Black, Transmissive,

IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich

VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA

Response Time: 14 (Typ.)(G to G)

Transmissivity: 3.45% (Typ.)(with Polarizer)

Lamp Type: No B/L

Touch Screen: Without

Application: Industrial

Driver IC COF Built-in 6 source + 3 gate chips

Signal Interface :LVDS (2 ch, 8-bit) , 30 pins Connector

Input Voltage: 5.0V (Typ.)

Environment Operating Temp.: -10 ~ 50 °C ;

Storage Temp.: -20 ~ 60 °C
