BOE 10.1inch Industrial LCD Panel with 149PPI Resolution 3.3V Voltage and 30K Hours Working Life

Merknaam:	BOE
Modelnummer:	GV101WXB-NZ0
MOQ:	10 STUKS
Prijs:	negotiable
Verpakking:	Industriële verpakking
Betalingsvoorwaarden:	T/T, W, Western Union, MoneyGram

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Rohs,CE,FCC

Kwaliteit:

Gloednieuw origineel

Pakket:

Originele industriële verpakking

Oplossing:

1200 x 800 pixels

Stijl:

40PIN IPS

Helderheid:

CD/M2

Kleur:

16,7m

Contrastverhouding:

1000: 1

Werkend leven:

30k uur

Type:

Maat:

10,1 inch

soort lamp:

Spanning:

Levering vermogen:

3000 pcs per week

Markeren:

149PPI Industrial LCD Panel

3.3V TFT-LCD Display

30K Hours LCD Display Panel

Productbeschrijving

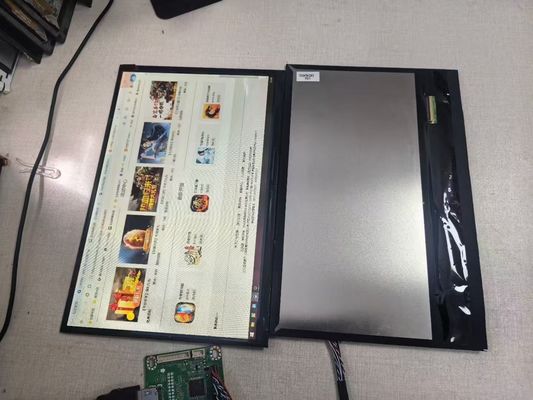

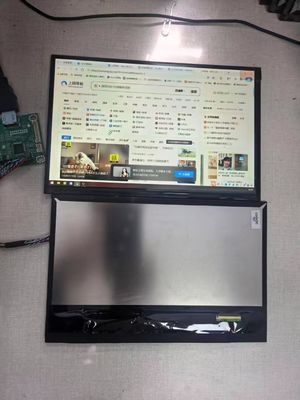

BOE 10.1inch Industrial Lcd panel GV101WXB-NZ0 1200*800Pixels 149PPI 40PIN connector

GV101WXB-NZ0-DGP0 is a 10.1" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), without backlight, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: With LED Driver , DGP0, 6bit+Hi-FRC, 3GP0, 8bit. Based on its features, einlcd recommend that this model be applied to Industrial etc.Built-in 2 source chips driver IC. According to the information stored in einklcd this model mass production on Q4, 2019, Now this model is in production. We inputted this model's specification on Aug 1 2019 for the first time, and the latest update on Oct 9 2025. If you want to embed the CELL in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of GV101WXB-NZ0-DGP0. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:BOE

Model P/N: GV101WXB-NZ0-DGP0

Diagonal Size: 10.1"

Panel Type: a-Si TFT-LCD, CELL , FOB

Resolution: 1280(RGB)×800, WXGA 149PPI

Pixel Format: RGB Vertical Stripe

Active Area 216.96(W)×135.6(H) mm

Bezel Opening-

Outline Size : 221.96(W)×144.43(H)×1.06(D) mm

Treatment : Hard coating

Luminance 0 cd/m²

Contrast Ratio : 1000 : 1 (Typ.) (TM)

Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down

Response: 30 (Typ.)(Tr+Td) ms

Good View at Symmetry Work Mode ADS, Normally Black, Transmissive

IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich

VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA

Glass Thickness 0.40+0.40 mm

It's Depth of CF Depth + Array Depth

CELL Depth = CF Depth + Array Depth Transmissivity -

Color Depth :16.7M 50% NTSC

Backlight No B/L , With LED Driver

Mass - Used for : Industrial

Refresh Rate 60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touchscreen :Without

Driver IC list Built-in COG 2 source chips

Signal Type LVDS (1 ch, 8-bit) , 40 pins Connector

Voltage Supply :3.3V (Typ.)

Max. Ratings Storage Temp.: -30 ~ 80 °C

Operating Temp.: -20 ~ 70 °C
