LG 6.5Inch Car LCD Display Panel with 925 cd/m² High Brightness 800*480 Pixels Resolution and 40PIN Connector

LG 6.5Inch Car LCD Display Panel with 925 cd/m² High Brightness 800*480 Pixels Resolution and 40PIN Connector

Merknaam:	Hannstar
Modelnummer:	HSD103KPW2-A10
MOQ:	10 STUKS
Prijs:	negotiable
Betalingsvoorwaarden:	T/T,W,Western Union,MoneyGram
Leveringscapaciteit:	3000 pcs per week

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Rohs,CE,FCC

Kwaliteit:

Gloednieuw origineel

Pakket:

Originele industriële verpakking

Materiaal:

Glas

Helderheid:

925ccd/m2

Oplossing:

800*480pixels

Contrastverhouding:

1000:1

Kleur:

16,7 miljoen

werkende leven:

20k uur

Connector:

40P

Aanraakpaneel:

zonder

Werkspanning:

3,3V

Verpakking Details:

Industriële verpakking

Markeren:

925 cd/m² High Brightness Car LCD Display

800*480 Pixels Resolution LCD Display Panel

40PIN Connector TFT-LCD Display

Productbeschrijving

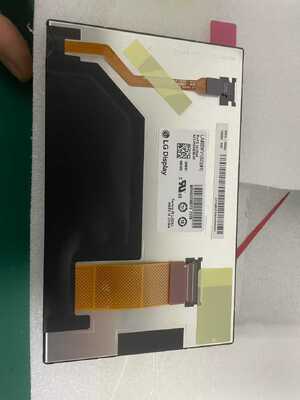

LG 6.5-Inch Car LCD Display Panel

Model: LA065WV1-SD01 (Alias: LA065WV1 (SD)(01))

Product Overview

This 6.5-inch diagonal a-Si TFT-LCD display panel from LG Display features an integrated WLED backlight system and is designed for automotive applications. The panel operates in extreme temperature conditions from -40°C to 85°C and withstands vibration levels up to 3.0G (29.4 m/s²).

Key Features

High brightness: 925 cd/m² (Typical)
Wide viewing angles: 89/89/89/89 (CR≥10)
IPS technology with normally black display
sRGB color gamut with 86% NTSC coverage
Wide temperature operation range
Hard coating surface (3H hardness)

Technical Specifications

Diagonal Size	6.5 inches
Resolution	800(RGB)*480 (WVGA), 143 PPI
Active Area	141.6(W) * 84.96(H) mm
Outline Dimensions	158(W) * 98.6(H) * 11.7(D) mm
Contrast Ratio	1000:1 (Typical)
Response Time	30ms (Max., Tr+Td)
Display Colors	16.7 million
Backlight	8S3P WLED, 10,000 hours lifetime
Signal Interface	Parallel RGB (1 channel, 6-bit), 40-pin FPC
Input Voltage	3.3V (Typical)
Operating Temperature	-40°C to 85°C
Storage Temperature	-40°C to 95°C
Panel Weight	155g (Typical) / 165g (Maximum)

Application

Primary application: Automotive Display Systems

Important Note: This model entered mass production in Q4 2014 and is now discontinued. For current production status and latest specifications, please contact LG Display or their authorized agents directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.
