BSDT 20.1Inch Industrial LCD Panel TDA201-001V03 with 1600x1200 Pixels and 900cd/m² Brightness

Name: BSDT 20.1Inch Industrial LCD Panel TDA201-001V03 with 1600x1200 Pixels and 900cd/m² Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TDA201-001V03
Price: 43.00 USD
Availability: InStock

Merknaam:	innolux
Modelnummer:	TDA201-001V03
MOQ:	10 STUKS
Prijs:	negotiable
Betalingsvoorwaarden:	T/T,W,Western Union,MoneyGram
Leveringscapaciteit:	3000 pcs per week

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Rohs,CE,FCC

Kwaliteit:

Gloednieuw origineel

Pakket:

Originele industriële verpakking

Oplossing:

1600*1200 pixels

Stijl:

WLED 60P

Helderheid:

900 ccd M2

Kleur:

16,7 miljoen

Contrastverhouding:

800 :1

werkende leven:

30.000 uur

Verpakking Details:

Industriële verpakking

Markeren:

20.1Inch Industrial LCD Panel

1600x1200 Pixels TFT-LCD Display

900cd/m² Brightness LCM

Productbeschrijving

BSDT 20.1-Inch Industrial LCD Panel TDA201-001V03

High-performance 20.1-inch industrial LCD panel featuring 1600*1200 resolution, 900 cd/m² brightness, and wide temperature operation for demanding outdoor and industrial applications.

Key Features

20.1-inch diagonal display with 1600*1200 UXGA resolution
High brightness 900 cd/m² for outdoor visibility
Wide operating temperature: -30°C to 70°C
800:1 contrast ratio with 85/85/85/85 viewing angles
LVDS interface with 30-pin connector
WLED backlight with 30,000-hour lifespan
Industrial-grade construction for harsh environments

Technical Specifications

Brand	BSDT
Model Number	TDA201-001V03
Panel Type	a-Si TFT-LCD, LCM
Diagonal Size	20.1 inches
Resolution	1600(RGB)*1200 (UXGA), 99 PPI
Active Area	408*306 mm
Brightness	900 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	85/85/85/85 (CR≥10)
Response Time	25 ms (Max., Tr+Td)
Interface	LVDS (2 ch, 8-bit), 30-pin Connector
Power Supply	12.0V (Typical)
Operating Temperature	-30°C to 70°C
Storage Temperature	-55°C to 85°C
Weight	2.75 kg (Maximum)
Outline Dimensions	432331.520 mm

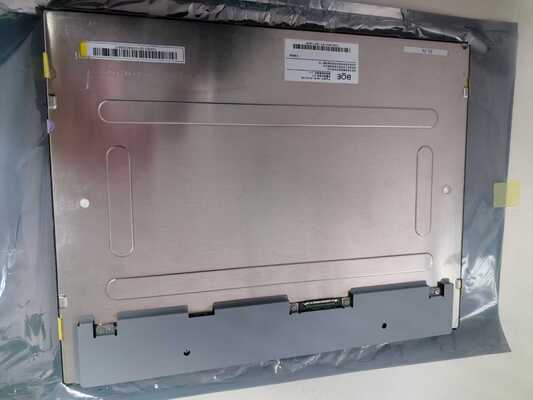

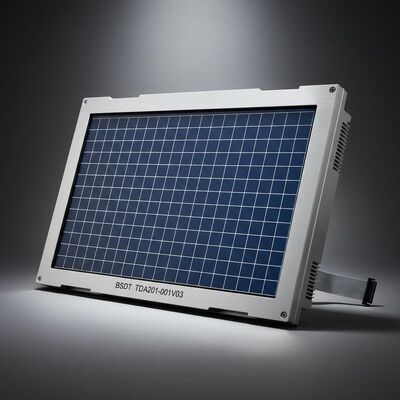

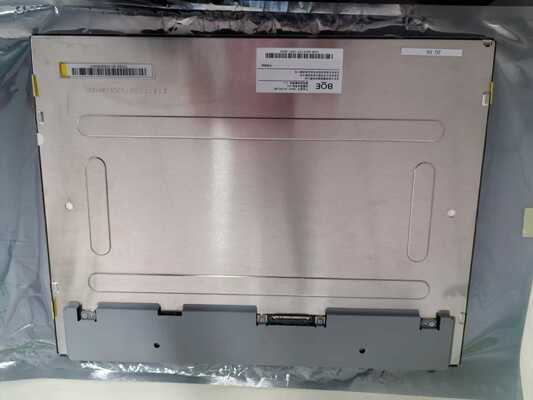

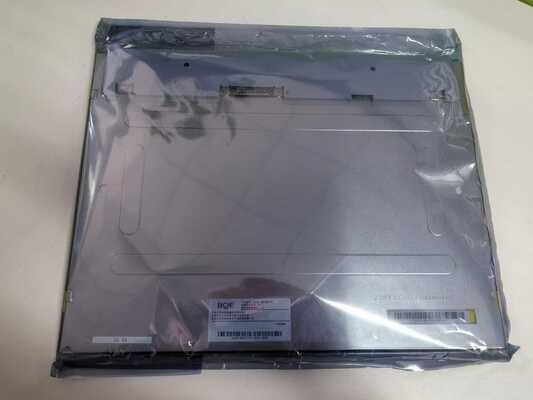

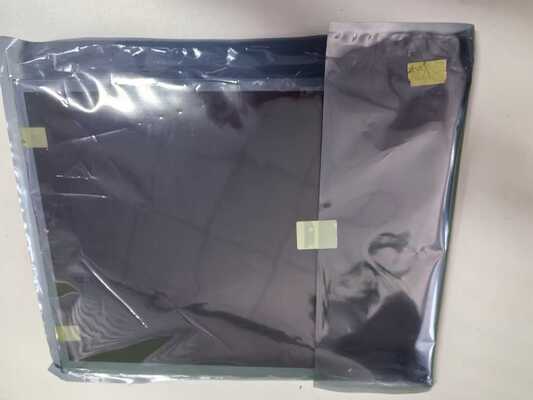

Product Image

Application Areas

Ideal for industrial control systems, outdoor digital signage, harsh environment displays, and applications requiring high brightness and wide temperature operation.

Note: Production status and specifications are subject to change. For the latest information and to integrate this LCD module into your product, please contact BSDT or their authorized representatives directly.
