AUO 15.6 Inch PC LCD Module B156ZAN05.1 with 3840x2160 Pixels 40PIN Connector and 400cd/m2 Brightness for High Resolution Display

Merknaam:	auo
Modelnummer:	B156HANAC.H
MOQ:	10 STUKS
Prijs:	negotiable
Betalingsvoorwaarden:	T/T,W,Western Union,MoneyGram
Leveringscapaciteit:	3000 pcs per week

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Rohs,CE,FCC

Kwaliteit:

Gloednieuw origineel

Pakket:

Originele industriële verpakking

Materiaal:

Glas

Helderheid:

400 ccd/m2

Oplossing:

3840*2160pixels

Contrastverhouding:

1000:1

Kleur:

16,7 miljoen

werkende leven:

30.000 uur

Connector:

40P

Aanraakpaneel:

zonder

Verpakking Details:

Industriële verpakking

Markeren:

3840x2160 Pixels PC LCD Module

40PIN Connector LCD Display Panel

400cd/m2 Brightness TFT-LCD Display

Productbeschrijving

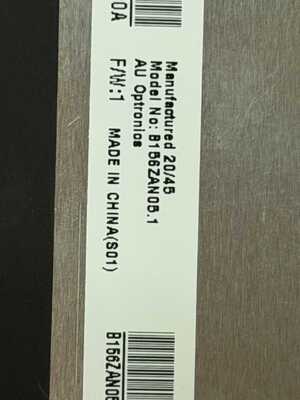

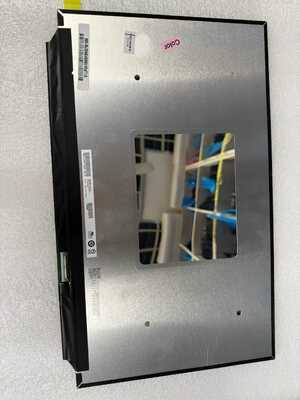

AUO 15.6 Inch PC LCD Module B156ZAN05.1

High-resolution 15.6-inch LTPS TFT-LCD display module featuring 3840*2160 UHD resolution, 283 PPI pixel density, and 40-pin eDP connector for premium visual performance.

The B156ZAN05.1 is a 15.6-inch diagonal LTPS TFT-LCD display panel from AU Optronics Corp., featuring an integrated Mini LED backlight system with LED driver. This high-performance display module operates within 0~50°C temperature range and offers exceptional visual quality for demanding applications.

Key Features

120Hz refresh rate for smooth motion
Mini LED backlight technology
Integrated LED driver
100% Adobe RGB color gamut
eDP 1.4 interface with 40-pin connector
Matte anti-glare surface treatment

Technical Specifications

Brand	AUO
Model P/N	B156ZAN05.1
Diagonal Size	15.6 inches
Panel Type	LTPS TFT-LCD, LCM
Resolution	3840*2160 UHD (283 PPI)
Active Area	344.218 * 193.622 mm
Luminance	400 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	85/85/85/85 (CR≥10)
Response Time	8.3 ms (G to G, Typical)
Color Depth	16.7 million colors
Backlight	Mini LED, 15K hours, With LED Driver
Refresh Rate	120Hz
Signal Type	eDP (4 Lanes), eDP1.4, 40-pin Connector
Operating Voltage	3.3V (Typical)
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60°C

Important Notice: This model entered mass production in Q3 2019 and is currently discontinued. For integration into future products, we strongly recommend contacting AUO or their authorized agents for the latest production status and specification details. The information provided is for reference only and should not be used as the sole basis for decision-making.

Recommended applications include high-performance laptops and other devices requiring premium display quality with advanced Mini LED backlight technology.
