BOE 23.8Inch Desktop LCD Module MV238QUB-N20 with 3840×2160 Resolution 500cd/m² Brightness and 30K Hours Working Life

Name: BOE 23.8Inch Desktop LCD Module MV238QUB-N20 with 3840×2160 Resolution 500cd/m² Brightness and 30K Hours Working Life
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: MV238QUB-N20
Price: 30.00 USD
Availability: InStock

Merknaam:	BOE
Modelnummer:	MV238QUB-N20
MOQ:	10 STUKS
Prijs:	negotiable
Betalingsvoorwaarden:	T/T,W,Western Union,MoneyGram
Leveringscapaciteit:	3000 pcs per week

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Rohs,CE,FCC

Kwaliteit:

Gloednieuw origineel

pakket:

Originele industriële verpakking

brightnerss:

350cd/m2

Connector:

30PIN

Kleur:

16,7 miljoen

Contrastverhouding:

1000:1

werkende leven:

30.000 uur

Oplossing:

3840*2160pixels

Spanningsvoorziening:

10V

Signaaltype:

LVDS

Verpakking Details:

Industriële verpakking

Productbeschrijving

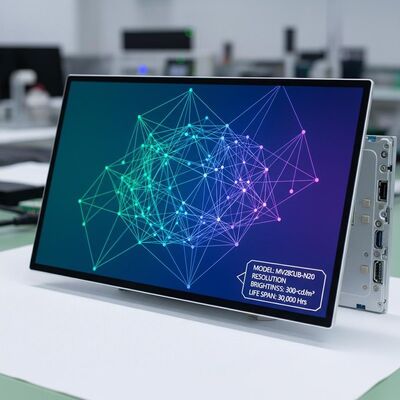

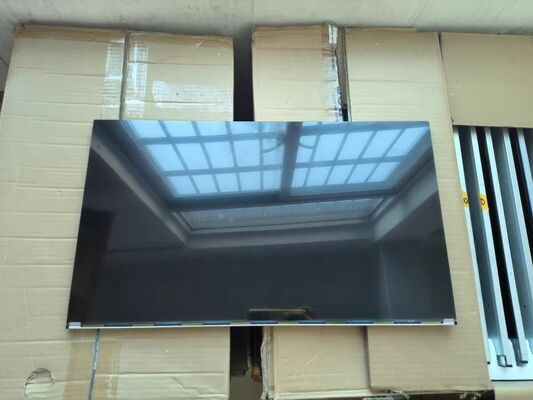

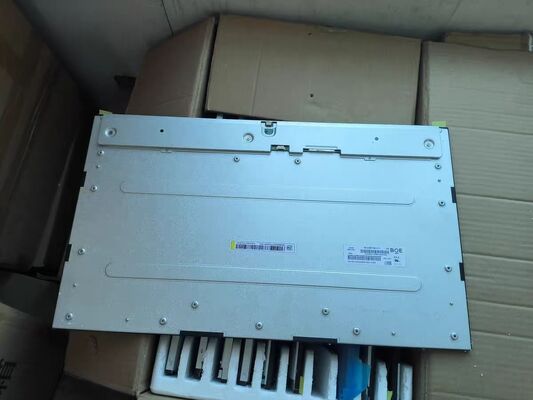

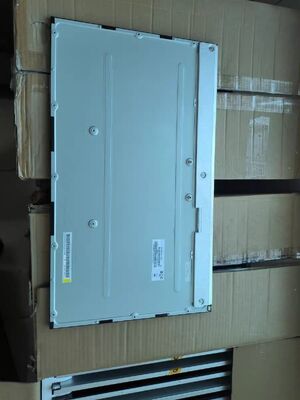

BOE 23.8-Inch Desktop LCD Module MV238QUB-N20

BOE Technology Group Co., Ltd. MV238QUB-N20 is a 23.8-inch diagonal a-Si TFT-LCD display panel featuring 3840×2160 pixels resolution, 500cd/m² brightness, and 30,000 hours working life. This panel is designed for desktop monitor applications and includes advanced features including DCI-P3 and sRGB color support, 10-bit color depth, and matte surface treatment.

Key Specifications

Brand	BOE
Model P/N	MV238QUB-N20
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	3840(RGB)×2160, UHD (185 PPI)
Active Area	525.888(W) × 295.812(H) mm
Outline Dimensions	534.84(H) × 307.148(V) × 1.32(D) mm
Surface Treatment	Antiglare (Haze 25%), Hard coating (3H)
Brightness	500 cd/m²
Contrast Ratio	1000:1 (Typ.)
Response Time	14ms (Typ.) (G to G)
Viewing Angle	89/89/89/89 (Typ.) (CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Color Support	1.07B colors, 99% sRGB
Interface Type	eDP (4 Lanes), HBR2 (5.4G/lane), 30 pins Connector
Frame Rate	60Hz
Power Supply	10.0V (Typ.)
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60°C

Product Features

Ultra HD 4K resolution (3840×2160 pixels)
High brightness 500 cd/m² with 1000:1 contrast ratio
Wide color gamut supporting 99% sRGB and DCI-P3
10-bit color depth for smooth color transitions
Matte anti-glare surface with 3H hardness coating
Advanced ADS technology for superior viewing angles
Built-in 8 source chips driver IC
eDP interface with HBR2 support
Extended 30,000 hours working life

Note: This product is a display panel CELL without backlight, backlight driver, or touch screen. Panel production status information is for reference only and should not be used as the sole basis for decision making. Contact BOE or authorized distributors for latest production and specification details.

Mass production began Q2 2023. Specification information last updated December 10, 2024.
