BOE 14-Inch Stretched LCD Monitor with 3840*1100 Resolution 300cd/m² Brightness and 30-Pin Connector

Name: BOE 14-Inch Stretched LCD Monitor with 3840*1100 Resolution 300cd/m² Brightness and 30-Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV140XTM-N52
Price: 30.00 USD
Availability: InStock

Merknaam:	BOE
Modelnummer:	NV140XTM-N52
MOQ:	1 STKS
Prijs:	negotiable
Betalingsvoorwaarden:	T/T,W,Western Union,MoneyGram
Leveringscapaciteit:	3000 pcs per week

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Taiwan

Certificering:

Rohs,CE,FCC

Kwaliteit:

Gloednieuw origineel

Pakket:

Originele industriële verpakking

Materiaal:

het glas oled

Kleur:

16.7M Colors

Model:

WLED

Stijl:

brede het scherm hoge resolutie 3840*1110

Helderheid:

300cd

Connector:

30PIN

Contrastverhouding:

1200:1

werkende leven:

15k uur

Verpakking Details:

Industriële verpakking

Productbeschrijving

BOE 14-Inch Stretched LCD Monitor NV140XTM-N52

This 14.0-inch diagonal stretched bar LCD display from BOE Technology features a unique 3840×1100 pixel resolution with 283 PPI density. Designed for specialized applications, this a-Si TFT-LCD panel offers high brightness, excellent contrast, and wide viewing angles.

Key Features

Ultra-wide 3840×1100 resolution bar display format
High brightness: 300 cd/m² typical
Superior 1200:1 contrast ratio
WLED backlight with 15,000-hour lifespan
eDP 1.3 interface with 30-pin connector
72% NTSC color gamut with 16.7 million colors
Slim profile design (≤3.2mm thickness)

Technical Specifications

Manufacturer	BOE Technology Group Co., Ltd.
Model Number	NV140XTM-N52 (BOE085F)
Screen Size	14.0 inch diagonal
Resolution	3840(RGB)×1100 pixels, 283 PPI
Active Area	344.218 × 98.604 mm (H×V)
Outline Dimensions	350.52 × 118.65 × 2.5 mm (H×V×D)
Luminance	300 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Viewing Angle	85/85/85/85 (CR≥10)
Response Time	30 ms (Typical, Tr+Td)
Color Depth	16.7 million colors
Backlight System	10S6P WLED with LED Driver
Interface	eDP 1.3 (2 Lanes), 30-pin connector
Operating Voltage	3.3V (Typical)
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 65°C
Refresh Rate	60Hz

Application Areas

This stretched bar LCD monitor is ideal for laptop displays, specialized industrial applications, digital signage, and any application requiring an ultra-wide format display. The panel features ADS technology with normally black mode for optimal performance in various lighting conditions.

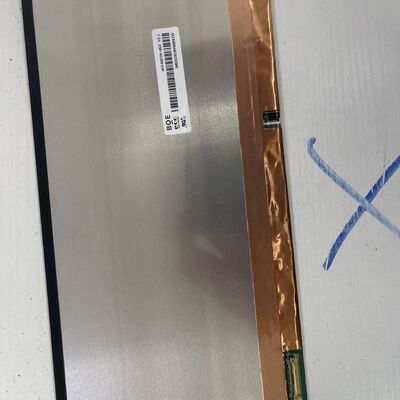

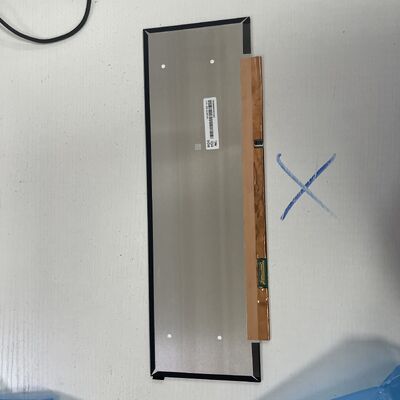

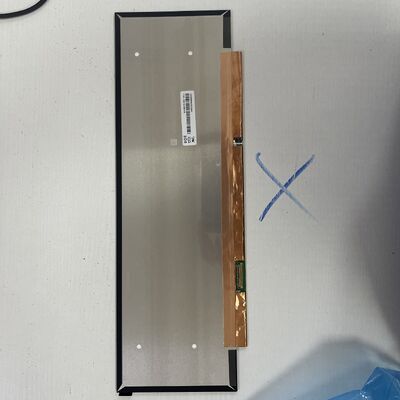

Product Images

Production Note: This model entered mass production in Q3 2019 and is currently in active production. For the most current specifications and production status, we recommend contacting BOE or their authorized agents directly.
